Features With Preview
Features with Preview is a type of widget that has larger preview buttons to switch to another option.
- Design Schemes switch many objects to another design
- Variation Groups switch groups of objects
- Scenarios replace a sub level with another one
- Animation plays an unreal sequence
- Scene Travel loads another scene in the same project
Content:
Documentation Archive 2025
Introduction

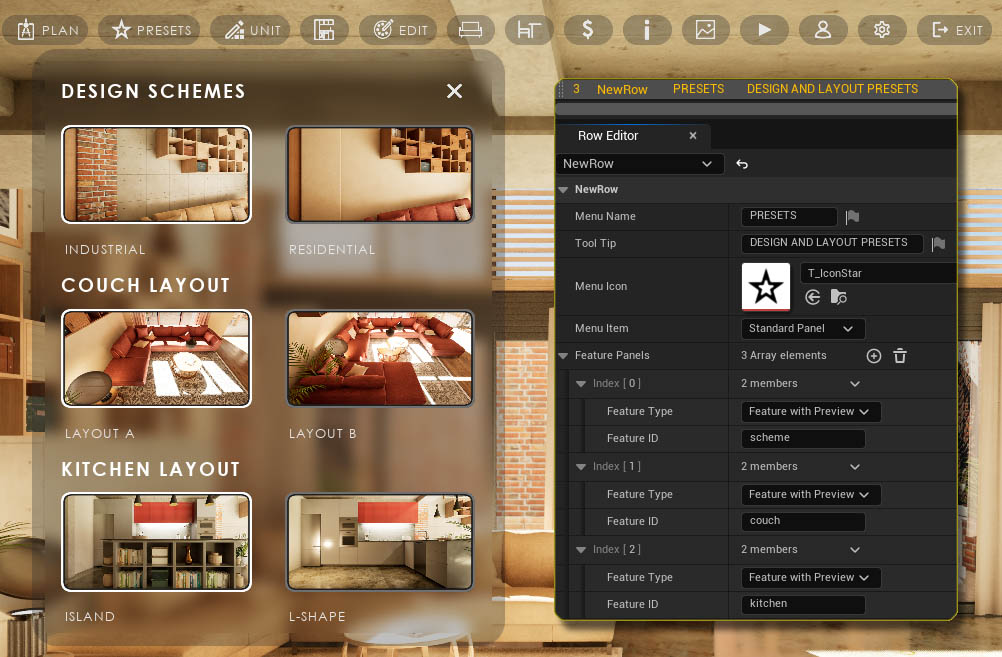

Features with Preview can be added multiple times to the Main Menu.Feature Type
Use Feature With Preview as the Feature Type.
Feature ID
Feature ID is the Row Name of the Feature with Preview in the Features W Preview Data Table that is assigned in the Info Map.
The features use Data Tables to store data. They will be reset if the UI3 project is updated. Consider working in copies of the original UI3 data tables.

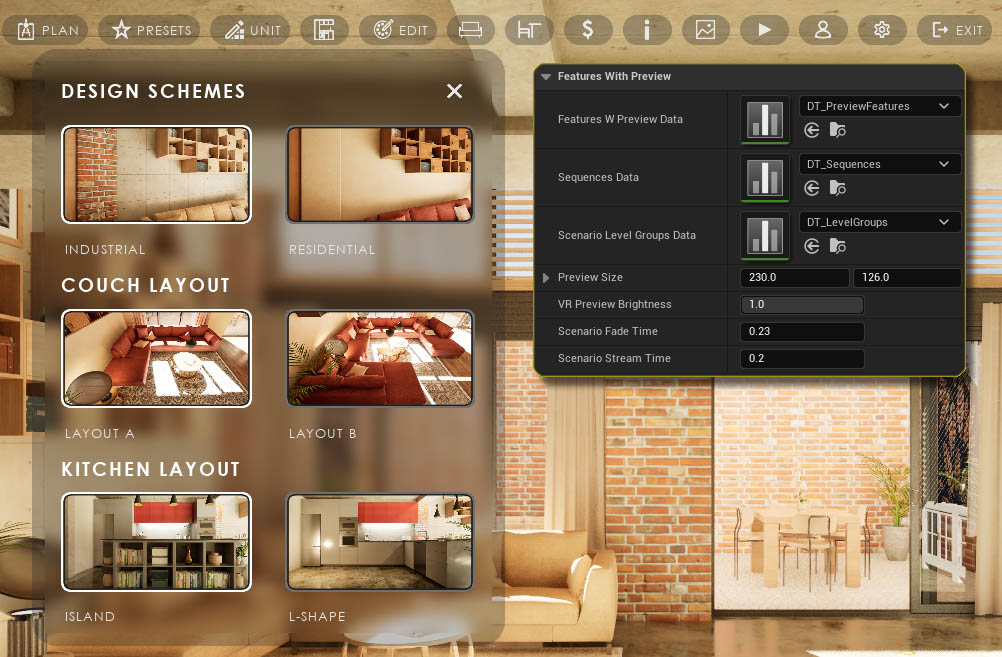

Info Map Settings
Features W Preview Data
Contains the data for all Features With Preview.
Sequence Data
Links to sequences in the scene
Scenario Level Groups Data
Contains the list of levels for the Scenario Groups
Features W Preview Data
The size of the preview image. The image is by default in 16:9 format but can be any format.
VR Preview Brightness
Only applies to projects with a virtual tablet menu.
Scenario Times
Can be adjusted if objects are streaming visibly in and out.
Features with Preview Data Tables

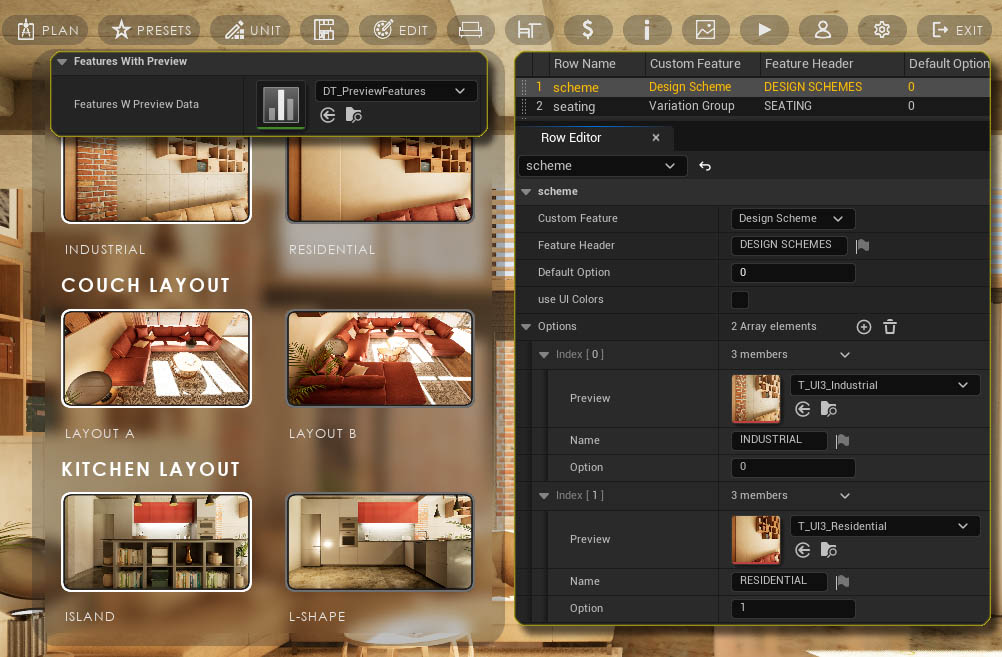

Features W Preview Data
Contains the data for all FwP widgets.
- Custom Feature - Choose the feature type for this feature
- Feature Header - Name that appears at the top of the widget
- Default Option - Option ID loaded at app start
- Use UI Colors - If the preview images are black and white graphics using UI colors.
- Options - Add an array element for each preview button
- Preview - the preview button image
- Name - the name under the button image
- Option - either the ID or name for the choice depending on the feature type.

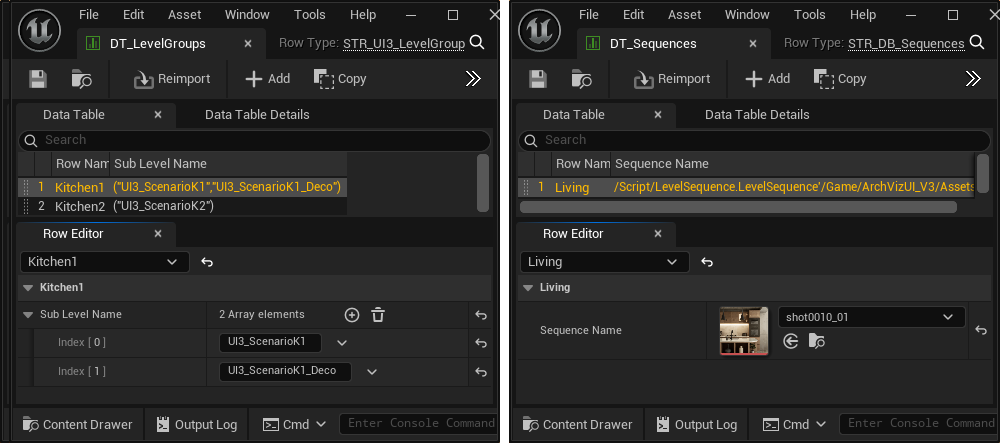

Scenario Level Group Data
Each row is a a group of levels to be streamed in or out for the scenario.
Enter the exact name of the level as an array element to the Sub Level Name array.
Sequences Data
Each row is a sequence that lives in the scene. link the sequence from the browser or the drop down list as Sequence Name.
Options per Feature Type

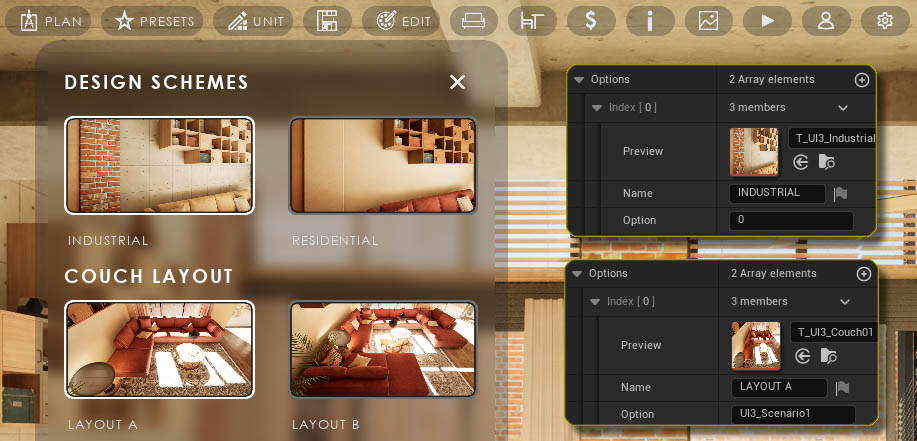

Design Scheme
The Variation Actors that are used for Design Schemes will switch to the Choice ID set here as option.

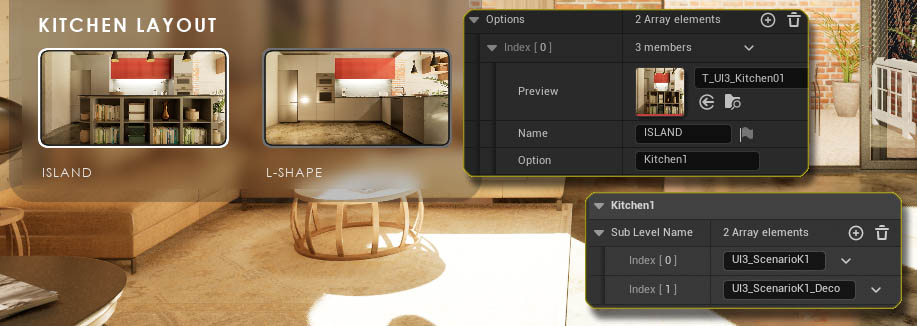

Scenario
The current scenario sub level will be streamed out and the level with the name set here as option will be streamed in.
Scenario Level Group
Scenario Groups are level groups defined in the Scenario Level Groups Data.
The previously loaded group of levels will be streamed out and the levels with the row name set here as Option will be streamed in.

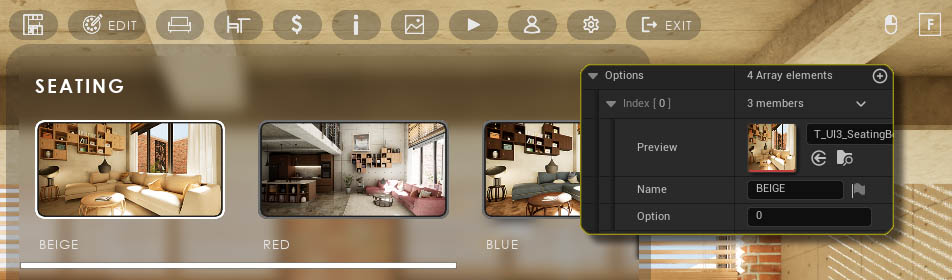

Variation Group
The Variation Actor that have an entry for this Variation Group will switch to the choice ID set here as Option.
Variation Actors can re-route the ID to another Choice ID than set here as option.
Variation Actor

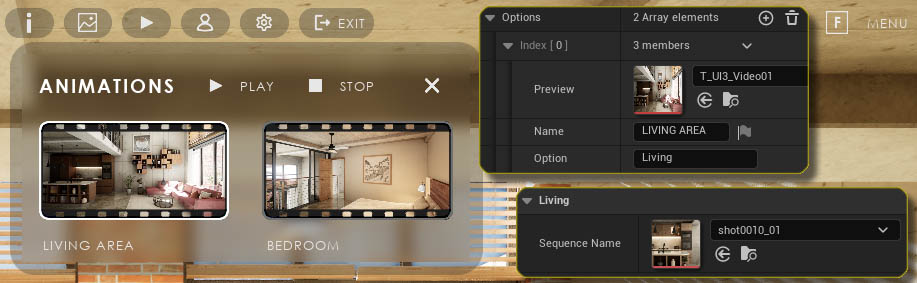

Animation
This starts playing a sequence.
The sequence can be defined in the Sequences Data table and the Option set here is the row name in the data table.

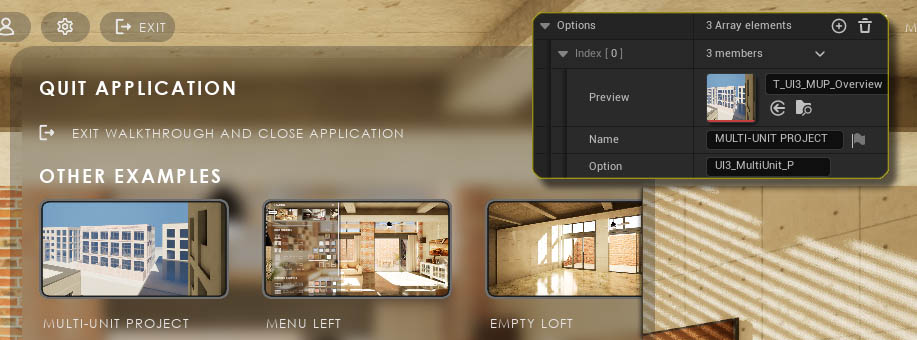

Scene Travel
The level named as Option will be loaded.
This will load a new scene that needs its own Info Map and UI.
The level needs to be in the same project (obviously) - it can't load another Unreal project or game.
