Multi-Unit Projects

The Multi-Unit Project Example can be found in

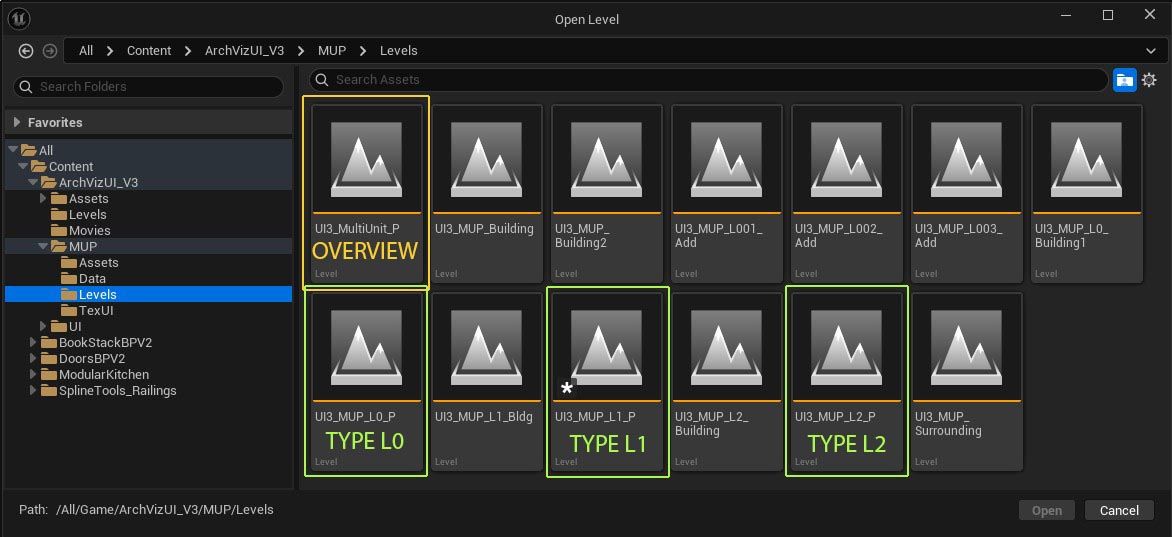

Content / ArchVizUI_V3 / MUP / Levels

The main level is UI3_MultiUnit_P

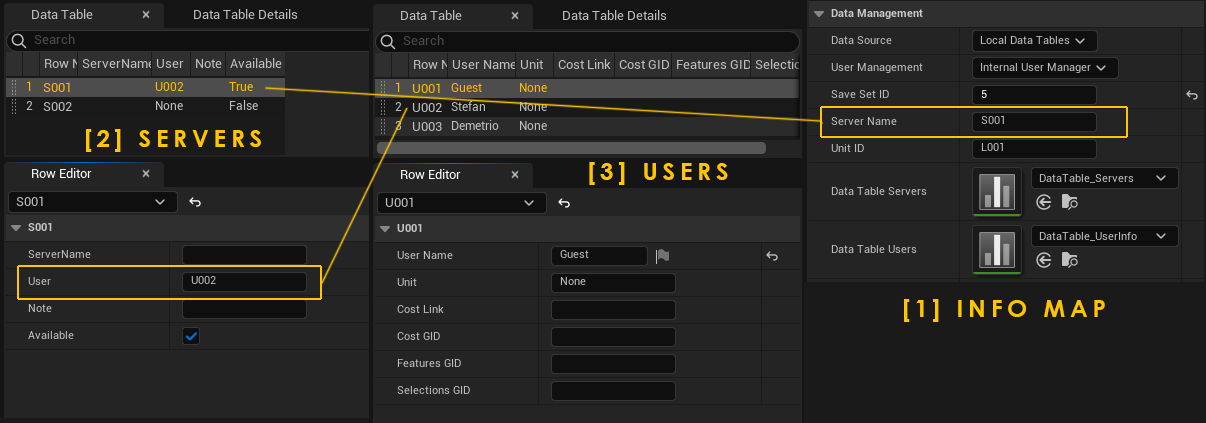

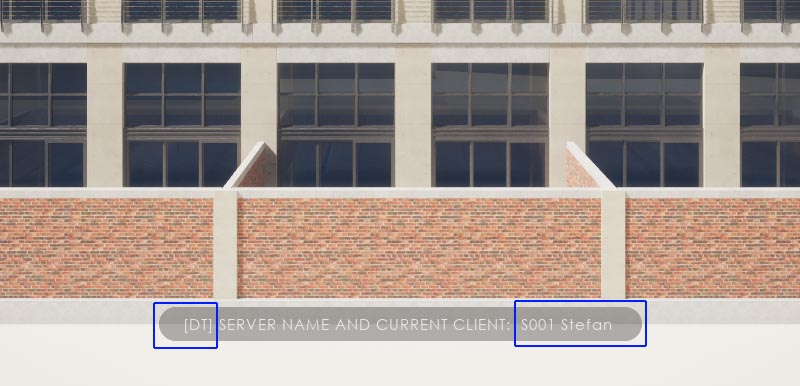

Server ID and User Name will briefly appear at the bottom of the screen on the right.

The Data Source can be checked on the left

• [DT] = Data Tables

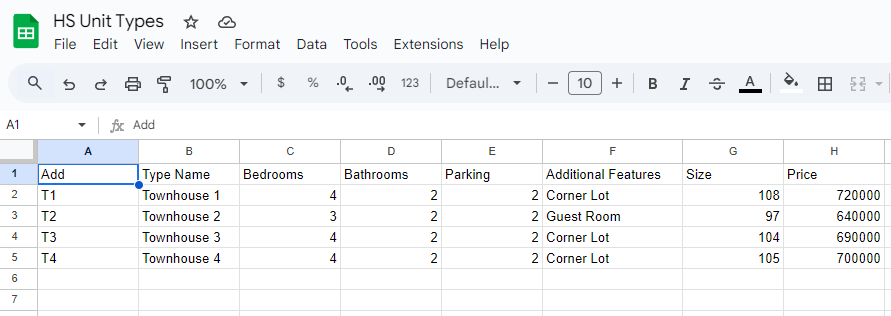

• [GS] = Google Sheets

The user can visit a unit from the widget or close the widget with the back button to select another unit.

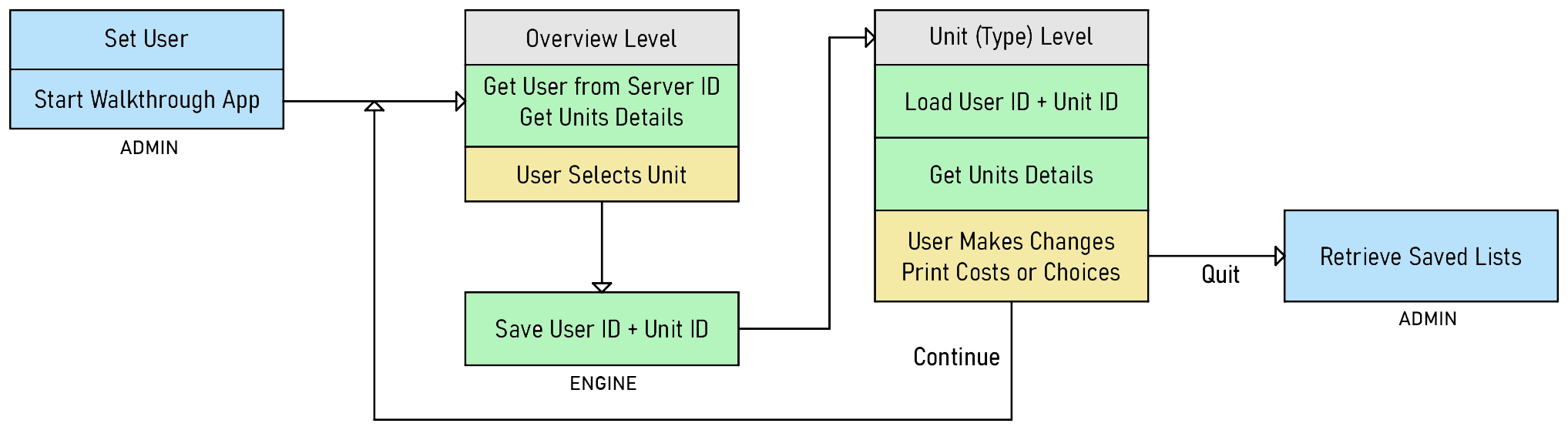

User ID and selected Unit ID are saved locally and passed on to the unit type levels.

Changes can be made to the data source during play through. The updated Google Sheets data will be loaded whenever the overview or unit level is loaded.

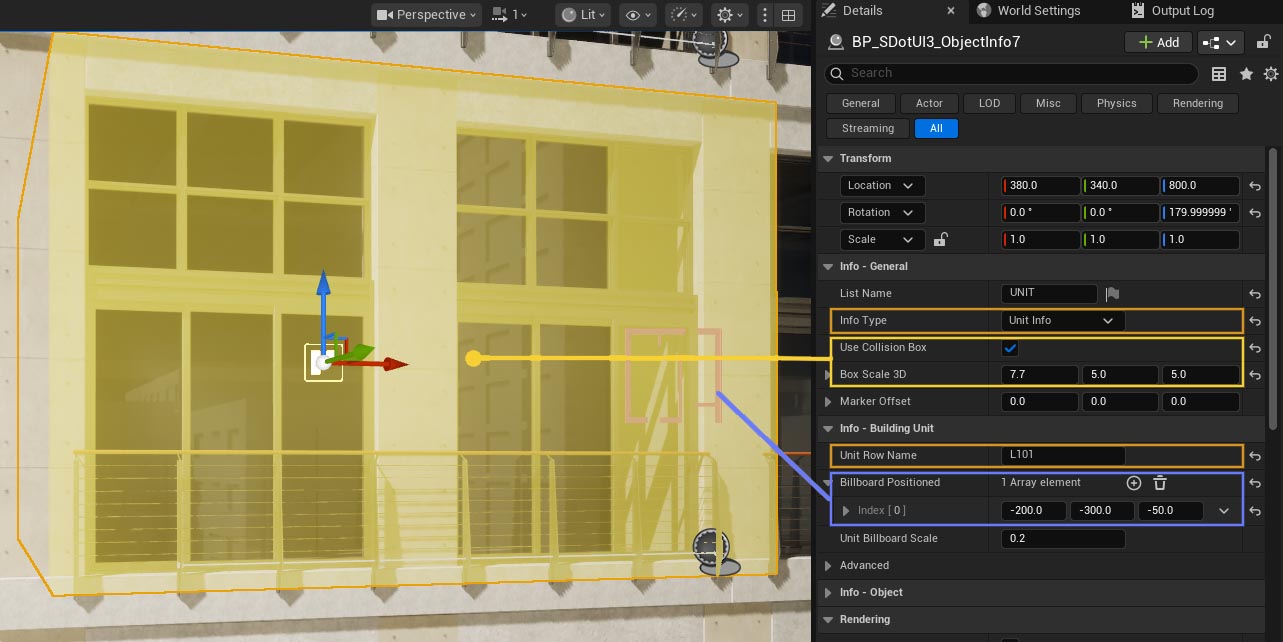

• Info Type - Unit Info
• Use Collision Box - True will add the yellow collision box. Scale the box to stick a bit out of the unit and be selectable.
• Unit Row Name - The Unit ID from the data source
• Billboard Positioned - Add billboards on each visible side of the unit. They will be updated from the data source

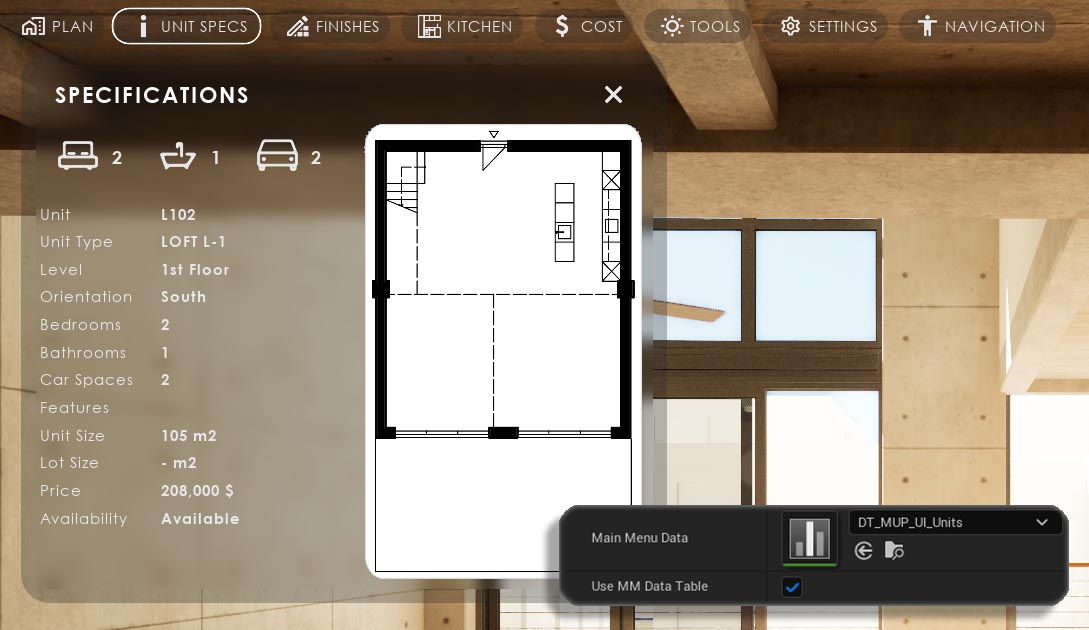

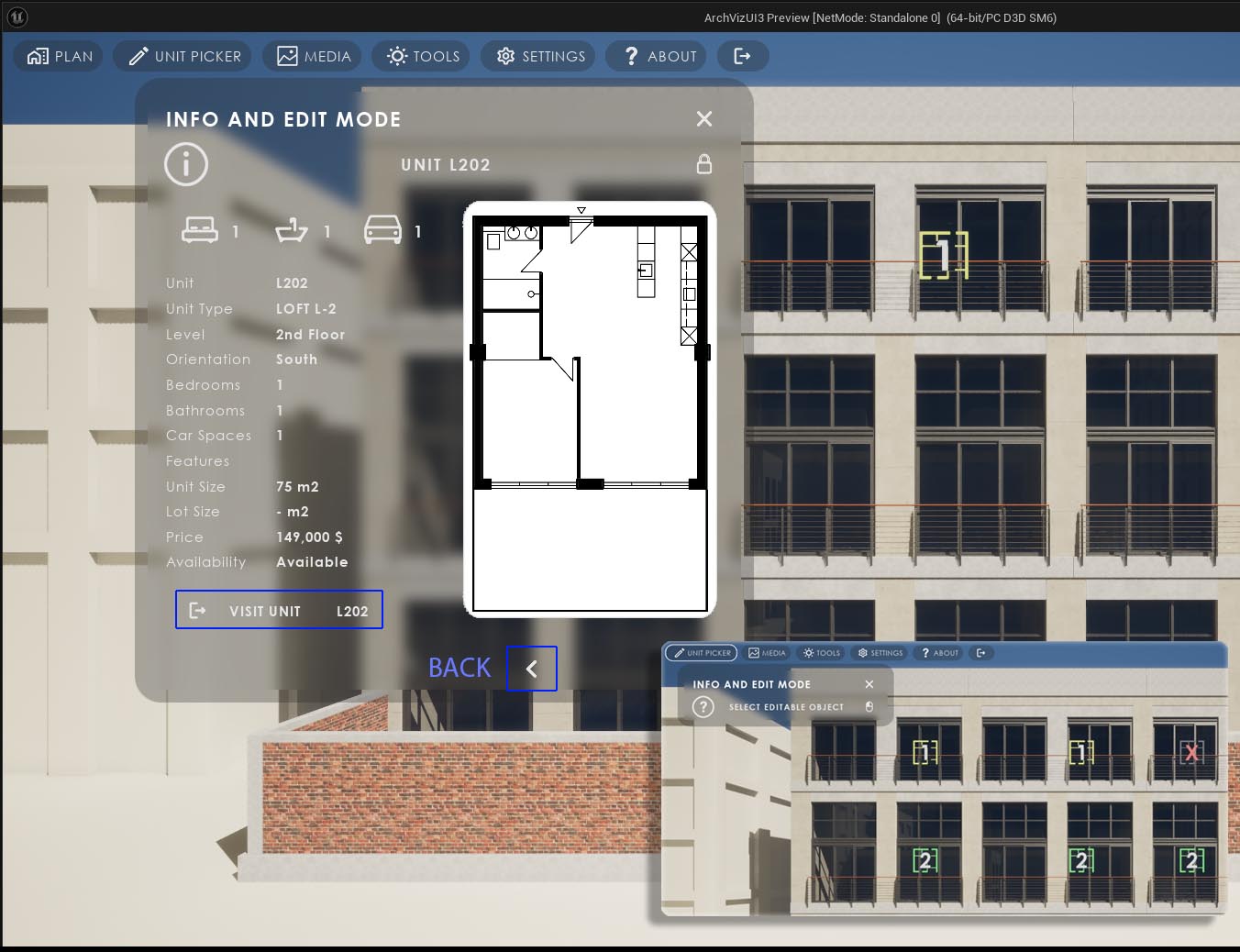

Unit L102 was selected to visit. Clicking the visit button tells the app to open Unit Type Level UI3_MUP_L1_P. The app saved the User Name and Unit ID to the MUP_SaveSlot.

This save slot is loaded by the unit level. The Unit Specs widget shows the details for unit L102.

The data table set in the Main Menu Data slot for all unit type levels is the same. So all units have the same UI layout

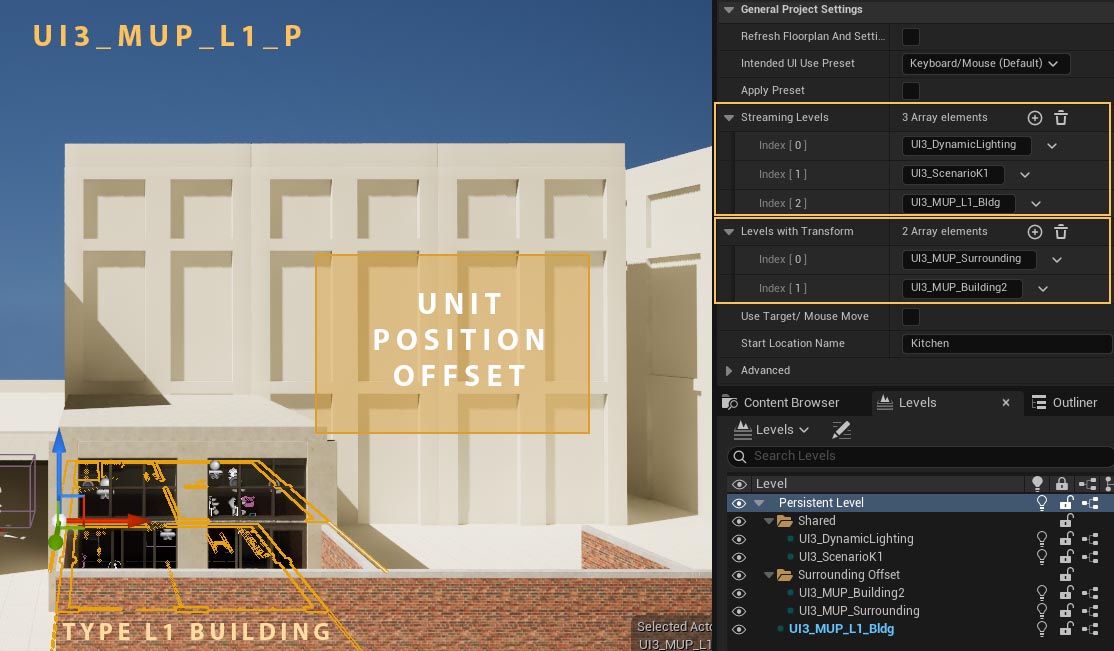

Streaming Levels

• Dynamic Lighting - this level is shared
• UI3 ScenarioK1 - this level is shared and contains the kitchen cabinets
• UI3 MUP_L1_Bldg - the building level is unique. It contains the building meshes, the build-in doors, and bathroom appliances

Levels with Transform

These 2 levels are shared.

All unit type levels are placed on the same world location in the editor. This allows sharing of the kitchen level and also makes the construction easier.

The surrounding levels are offset to create the illusion that they are in the correct location in the building.

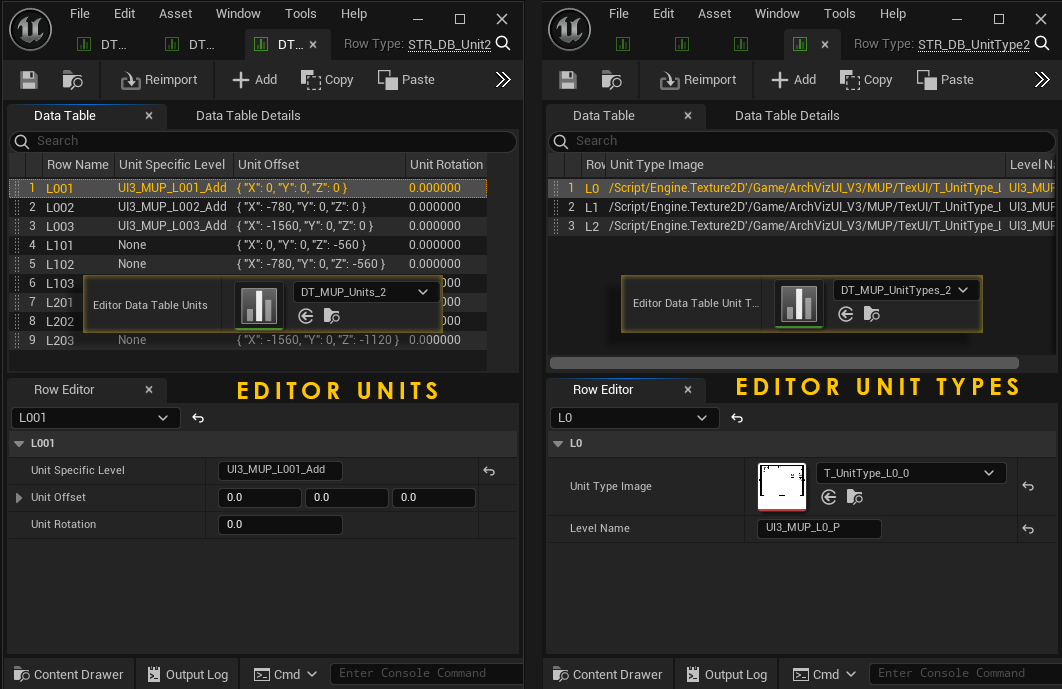

Editor Data Table Units

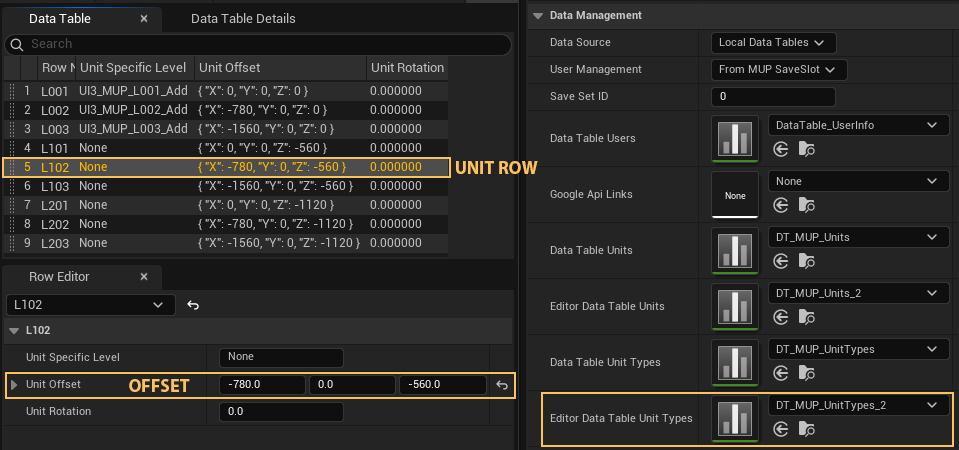

• Offset and Rotation - defines the relative position of the unit in the building
• Unit Specific Level - names an additional level only needed for that unit. The ground floor units have the building parts visible when walking to the outside.

Editor Data Table Unit Types

• Unit Type Image - preview image in the unit picker
• Level Name the main persitent level to be loaded when the visit button is clicked.

• The Save Set ID set in the Info Map of all levels is the same
• A Designer is used. Designers use Tags to link objects
• Features with Preview can be used if they use the same settings in the Info Map
