Blueprints

Supporting Blueprints For UI3

Supporting blueprints that come with UI3.

  • Location actor
  • Walkable mesh marker
  • Cost group
  • Layout Swap

Content:

Location Marker

Walkable Mesh Tagger

Cost Group

UI Layout Changer

Doors Blueprint

TV Player

Ceiling Fan

Railing

Location Marker

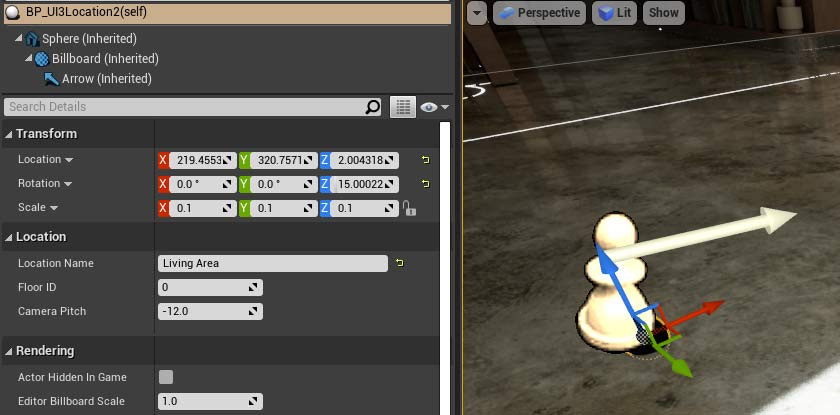

BP_SDotUI3_Location

Place one in any quick teleport location.

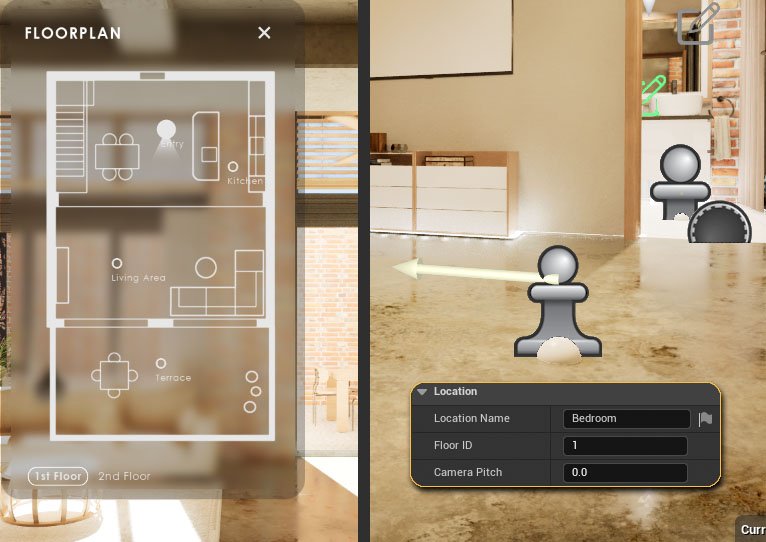

Location Name

The name will appear in the floor plan, if names are generally enabled.

Floor ID

The index of the floor drawing the actor should show up in.


Walkable Mesh Tagger

BP_SDotUI3_Walkable

Target / Mouse Move

Meshes that are at the same height as the player is standing on are automatically considered a walkable mesh. Other meshes, like stairs need to be marked. This actor does just that.

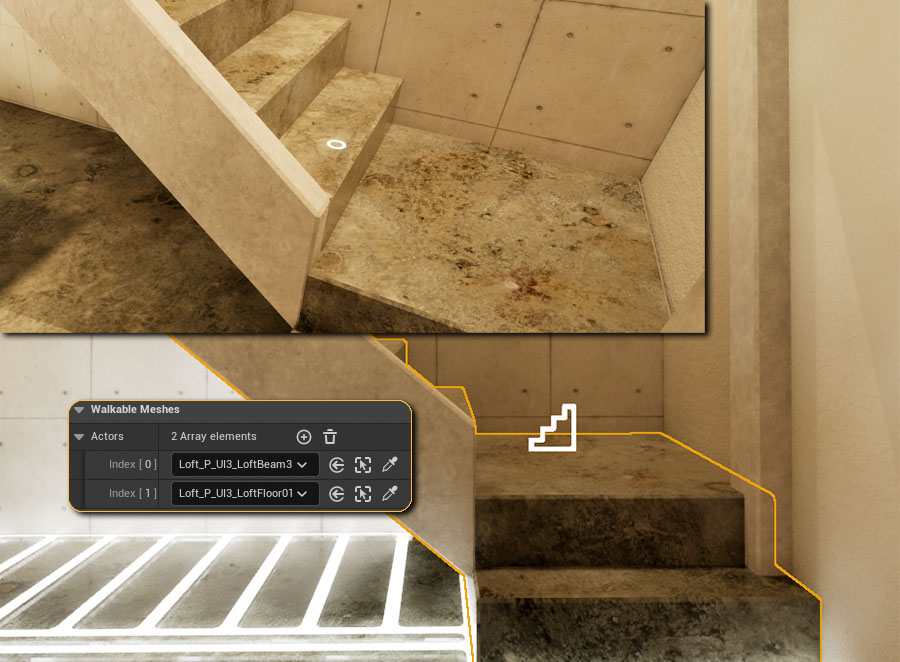

Walkable Meshes

Place the blueprint near a meshes that the player should be able to walk on and add it to the array.

Note that this doesn't replace collision. Every Mesh in the scene that is within the players range needs to have a collision.



Cost Group

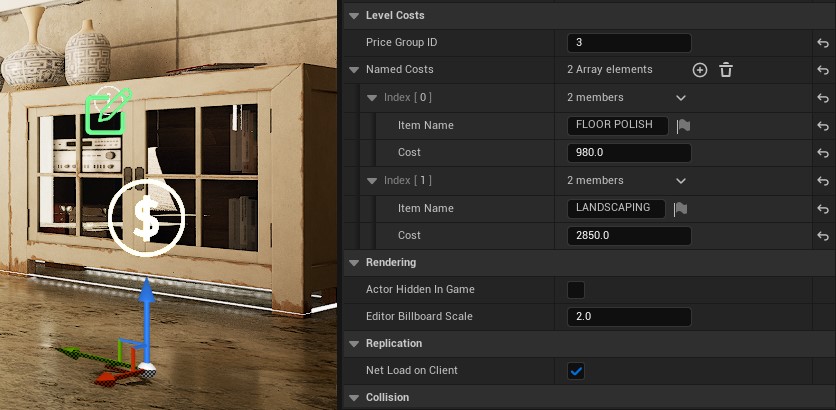

BP_SDotUI3_CostGroup

This blueprint can add a list of cost items to a sub level. This is to track additional costs by adding a streaming level.

UI3 Cost Tracking
