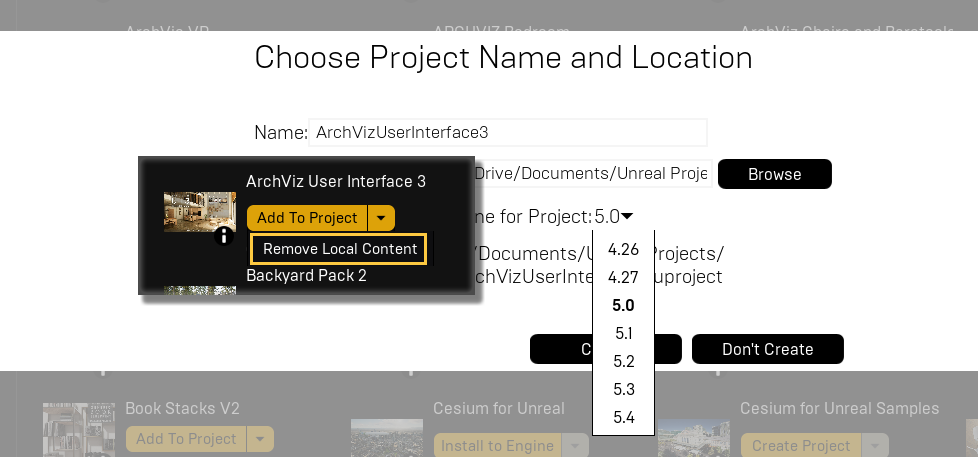

UI3 Frequently Asked Questions
FAQ, Tips and tricks, or answers for frequent questions are here. Known bugs are on the next page.
Content:
[Legacy] Touch Screen Controls
[Legacy] Change the Fade In Time at Start
I cannot select an object in edit mode
Player Facing the Wrong Way At Start
Please replace the Enable HMD with the appropriate node from the plugin that is required for your headset if necessary.
![image 01c.png image](../images/architecture/2021/ui3-faq/01c.png)

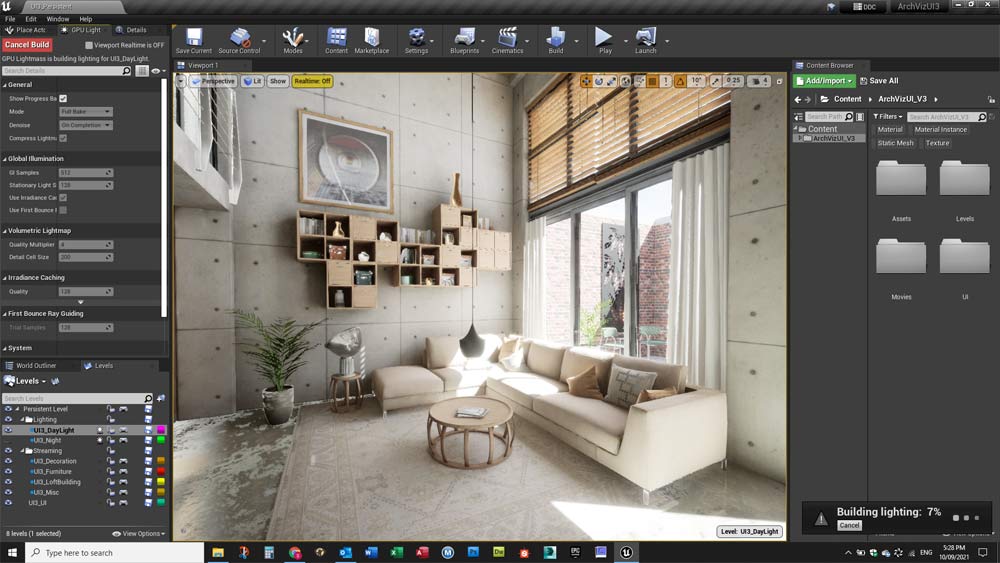

Using GPU Lightmass
Lumen is the best way to light your scene in Unreal 5.GPU Lightmass can be used to bake lighting in your scene if you want to use raytracing instead of Lumen. Follow all the steps suggested in the documentation (link below) to use it in your project. UI3 will not interfere with lighting in the scene. Scenarios are working with GPU LM.
Dynamic objects (mesh variations) need some direct light to look decent (not black). This can be the skylight. Reflection actors need to be rebuild manually after each GPU Lightmass build. Black variation actors can be caused by missing reflection actors. Place one with low radius next to the black asset and rebuild lighting and reflections.
![image 02.jpg image](../images/architecture/2021/ui3-faq/02.jpg)
Packaging Tips
Packaging will create an app that can be run by users that do not have Unreal installed. You find it in the File menu (Unreal 4) or above the viewport (Unreal 5).First make a few changes to the Project Settings
- Set the Default Game Map In the Maps and Modes section. This needs to be the main (persistent) level of your scene.
- Add the levels that need to be cooked in the Packaging - Advanced - List of Maps to include... array. You don't need to add any sub levels that are loaded from your main levels to the list. But you need to add any other levels if the user can travel to them.
- Add your movie directory there as well. I put them in both arrays Additional Non-Asset Directories ... . It's probably not necessary that way.
NOTE: Leaving the list of maps empty can increase your package size significantly. In that case everything in the project will be packaged.
![image 03c.jpg image](../images/architecture/2021/ui3-faq/03c.jpg)

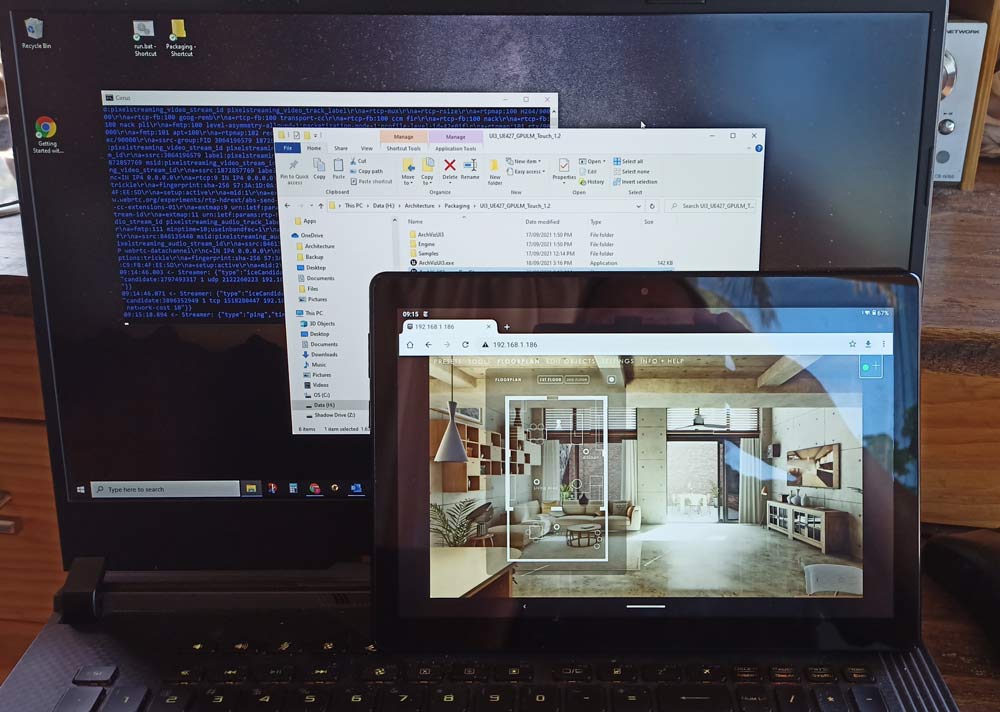

Pixel Streaming
With touch screen controls available now pixel streaming is also possible to tablets and other devices that don't have the power to render the scene. You can run the app in any modern web browser this way.Follow the steps in the link below to enable pixel streaming for your project. It's easy to do locally in your own network. Some additional steps are needed to stream over the internet or alternatively you can use a service like https://www.furioos.com/
![image 04.jpg image](../images/architecture/2021/ui3-faq/04.jpg)

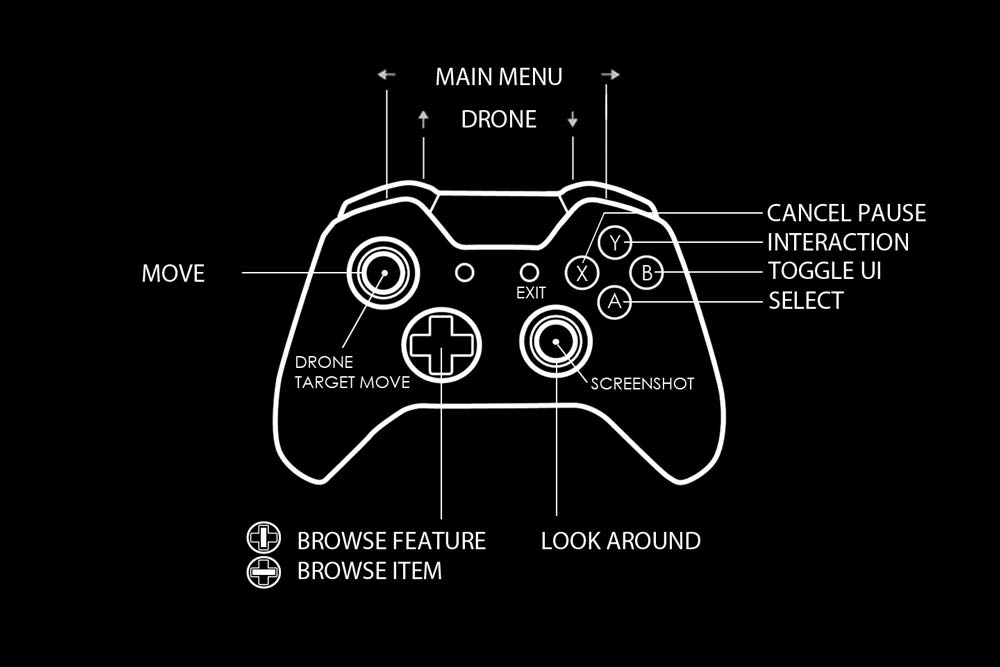

Using VR, Touch or Gamepads
You need to set the Game Mode in the World Settings of your scene. The World settings are part of the 'persistent' level. If You only have one level, then this level is the persistent level.UI3 can be used with
- Mouse and Keyboard controls on a PC
- A gamepad on a PC
- Touch controls with or without Pixel Streaming
- VR projects with VIVE or Oculus Rift controllers or a gamepad.
Read on how to use Game Modes for these different uses.
![image 05.jpg image](../images/architecture/2021/ui3-faq/05.jpg)

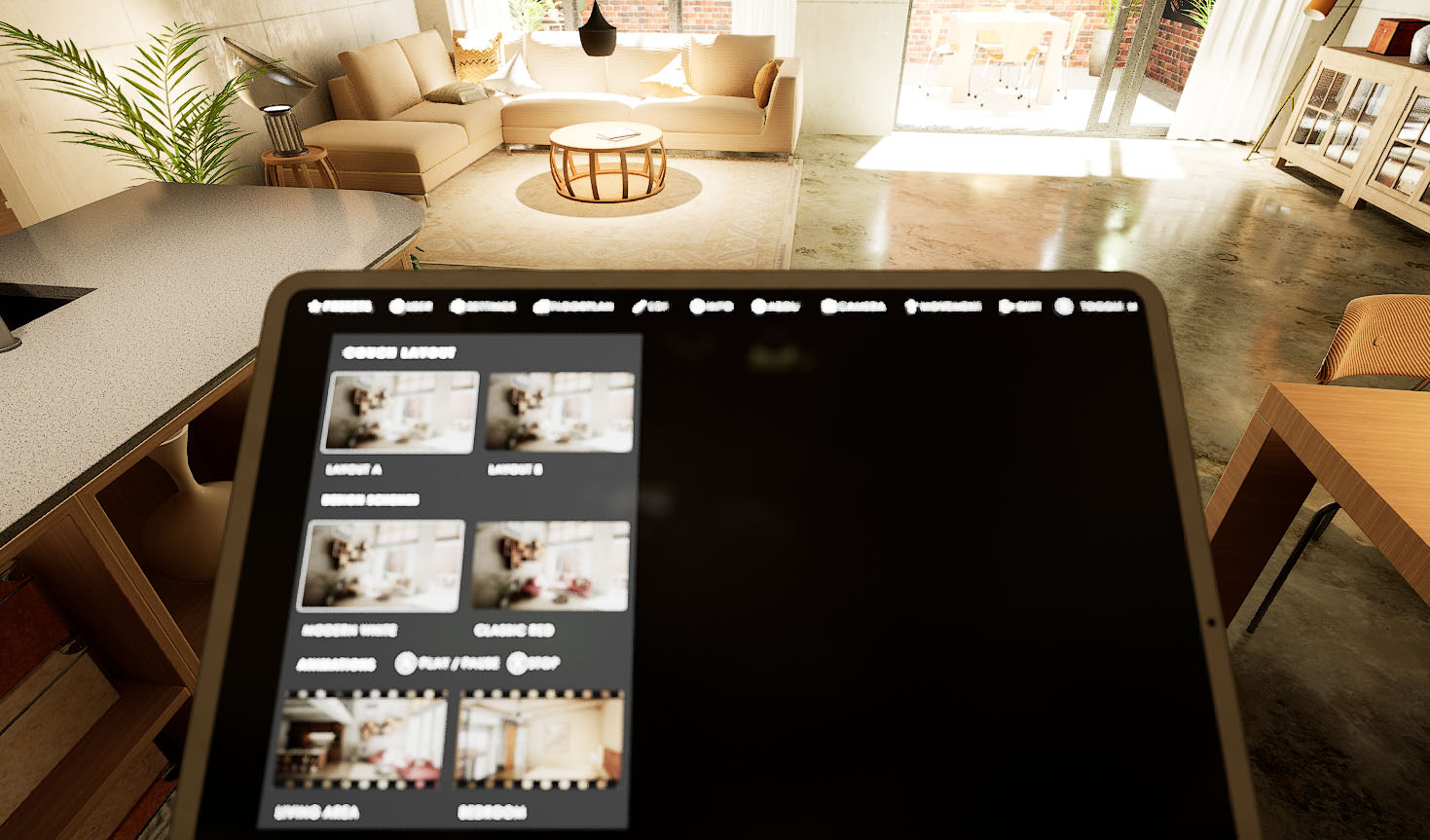

VR Tablet Is Blurry
Sorry I'm aware of it. I submitted an update with an example level to show how to set the UI up for VR.- The update fixes the interface not responding
- Set the default aperture to 32 or it will be blurry because the tablet is out of focus. (Settings - Cinematic Camera)
- use colour scheme id 3 as a start
- increase icon and text sizes
![image 06c.jpg image](../images/architecture/2021/ui3-faq/06c.jpg)

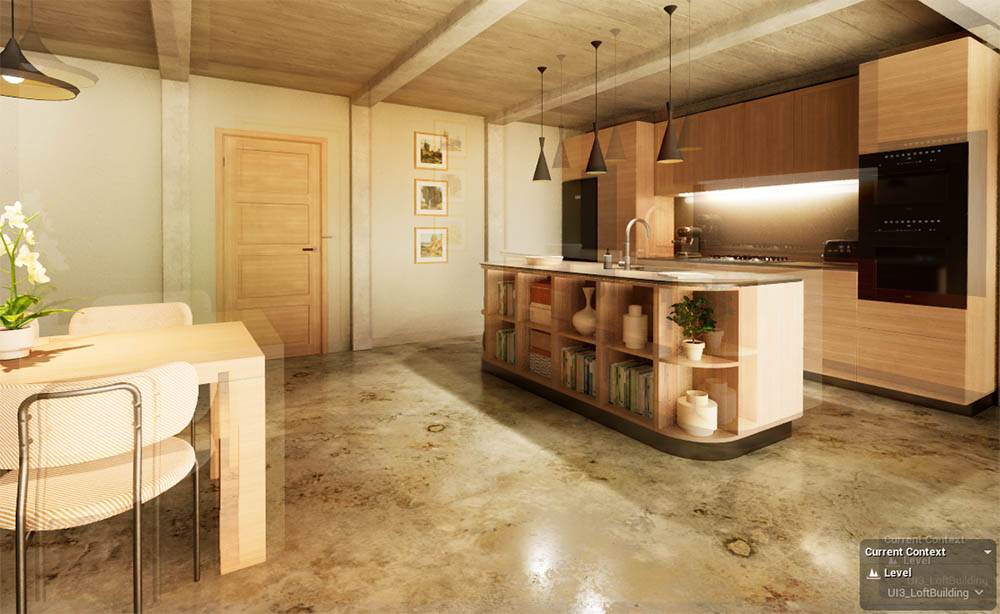

Looking Through Windows Looks Wrong.
This can happen in any of the Unreal 5 versions. Lumen is creating ambient occlusion and shadows. But it doesn't really care about translucency. The demo project uses ray traced translucency for this reason. This improves the Reflections on the glass panes as well.Part of translucency is Refraction. Turn it off to fix overly dark shadows behind glass. As seen in the image. You can also try to tweak refraction in the glass material. (There might be other places to look for it, like the light sources, or the project and world settings).
This topic has many aspects and it is constantly changing as well. I can only direct you to Google to find out what works best for you.
![image 07a.jpg image](../images/architecture/2021/ui3-faq/07a.jpg)
![image 08.jpg image](../images/architecture/2021/ui3-faq/08.jpg)
![image 09.jpg image](../images/architecture/2021/ui3-faq/09.jpg)

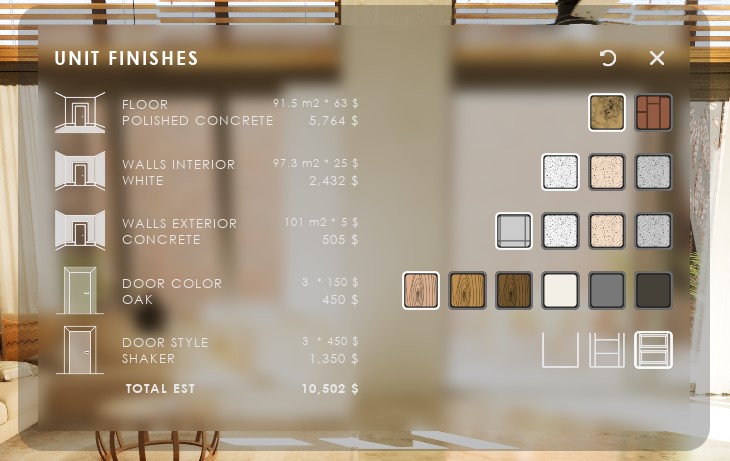

[Legacy] Where can I translate the menu text?
The text that isn't part of the data you enter can be translated in the Advanced Settings of the UI Design section in the Info Map.Main Menu Text stores all the Main Menu text.
Button Text stores all the text used in buttons plus most of other text that needs to be translated.
Just a reminder: The widget takes the text based on the Array ID. You have to translate the text word by word. Do not delete an array element or the text will appear in the wrong places.
Use the right click menu to Copy/Paste the array from one project to the next.
Or open the info map blueprint and make the changes there permanently for all future projects. You can copy a project's arrays into the info map.
![image 10.jpg image](../images/architecture/2021/ui3-faq/10.jpg)
![image 11.jpg image](../images/architecture/2021/ui3-faq/11.jpg)
![image 12.jpg image](../images/architecture/2021/ui3-faq/12.jpg)
![image 13.jpg image](../images/architecture/2021/ui3-faq/13.jpg)
![image 14.jpg image](../images/architecture/2021/ui3-faq/14.jpg)
![image 15.jpg image](../images/architecture/2021/ui3-faq/15.jpg)
![image 16.jpg image](../images/architecture/2021/ui3-faq/16.jpg)
![image 17.jpg image](../images/architecture/2021/ui3-faq/17.jpg)
![image 18.jpg image](../images/architecture/2021/ui3-faq/18.jpg)
![image 19.jpg image](../images/architecture/2021/ui3-faq/19.jpg)
![image 20.jpg image](../images/architecture/2021/ui3-faq/20.jpg)
![image 21.jpg image](../images/architecture/2021/ui3-faq/21.jpg)
![image 22.jpg image](../images/architecture/2021/ui3-faq/22.jpg)
![image 23.jpg image](../images/architecture/2021/ui3-faq/23.jpg)
![image 24.jpg image](../images/architecture/2021/ui3-faq/24.jpg)
![image 25.jpg image](../images/architecture/2021/ui3-faq/25.jpg)
