Modular Kitchen - System Drawings

Drawings for reference showing

  • module sizes
  • front and crown styles
  • cabinet types
  • appliance cabinet types and positioning
  • corner cabinets, bench overhangs and side panels

Content:

Modules and Cabinet Types

Module Widths

Cabinets and Fronts

Front and Crown Styles

Appliance Cabinets

Cabinet Sizes

Cabinet Height Offsets

Corners Cabinets 90 cm wide

Corner Cabinet 62 cm wide

L-Shaped and U-Shaped Kitchens

Bench Overhang and Cabinet Sides

Modules and Cabinet Types

The Modular Kitchen Builder creates a kitchen from an array of modules. Each array index is one module. The origin of the kitchen is on the back wall of the left side.

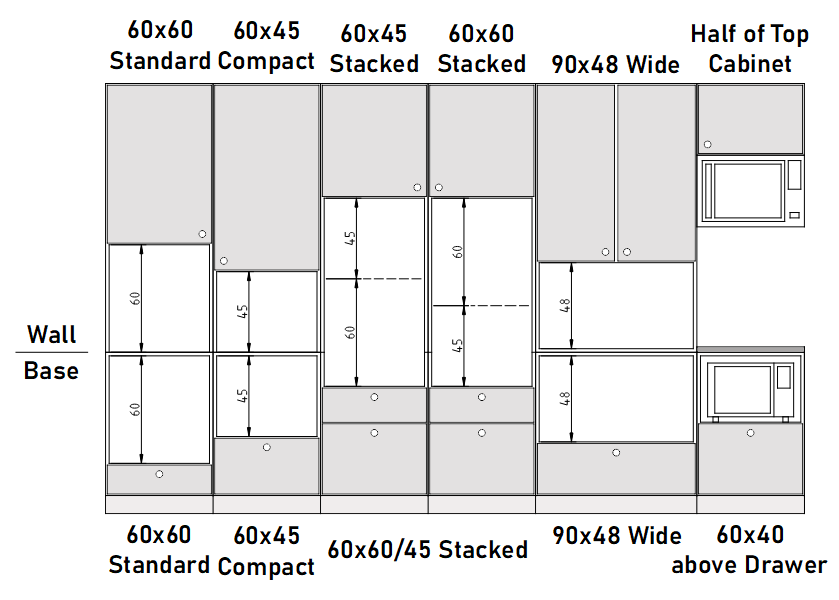

The image shows the cabinet types and their position.


Module Widths

Modules can have a width of 30 - 45 - 60 - 75 - 90 cm.

Modules are 12 - 18 - 24 - 30 - 36 inches wide.

30cm are a bit less than 12 inches for our non-metric users. You

The height will always be metric.

Sizes can be overwritten with exact values.


Front and Crown Styles

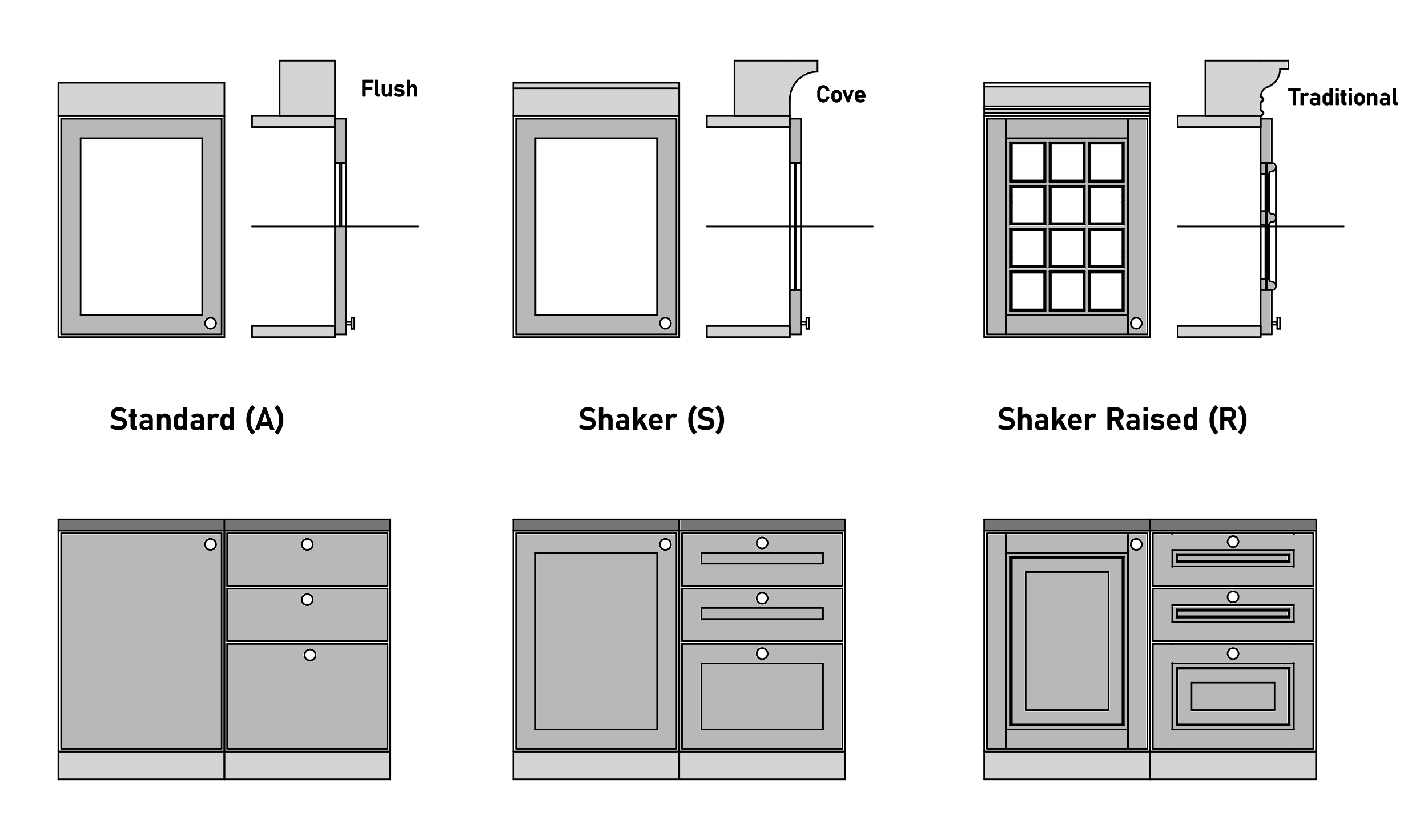

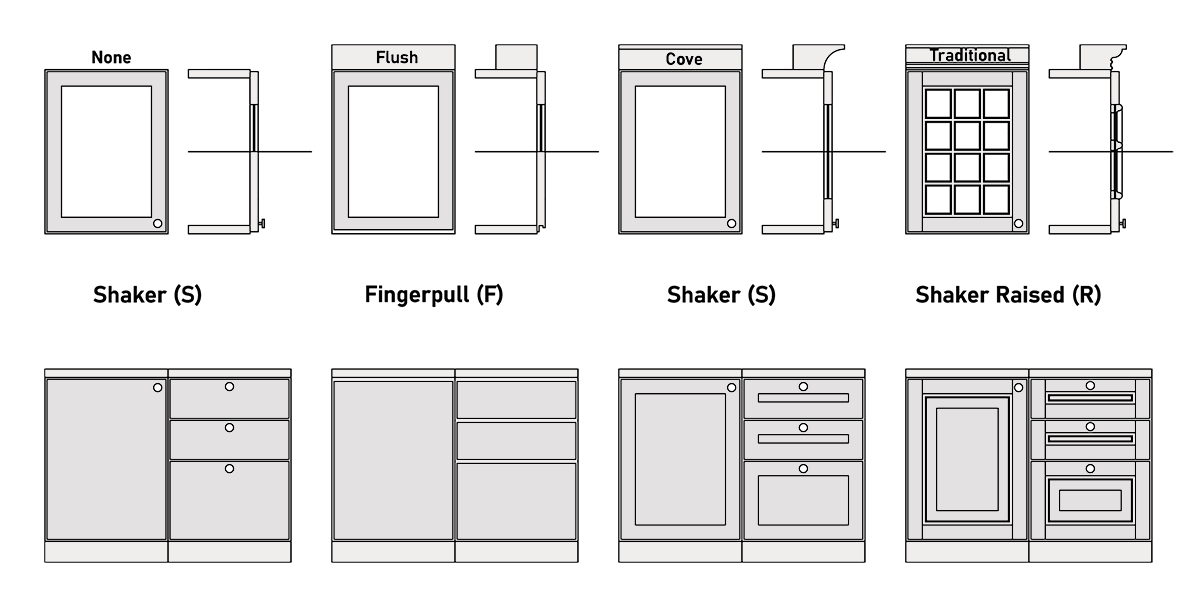

Cabinet Front Styles
  • Flat
  • Shaker
  • Shaker Raised


Appliance Cabinets

Cabinets for Built in Appliances are 60cm deep.

Built in Appliances generally come in 3 sizes:

  • Standard: 60cm x 60cm (24 x 24 in)
  • Compact: 60cm x 45cm (24 x 18 in)
  • Wide: 90cm x 48cm (36 x 19 in)


Cabinet Height Offsets

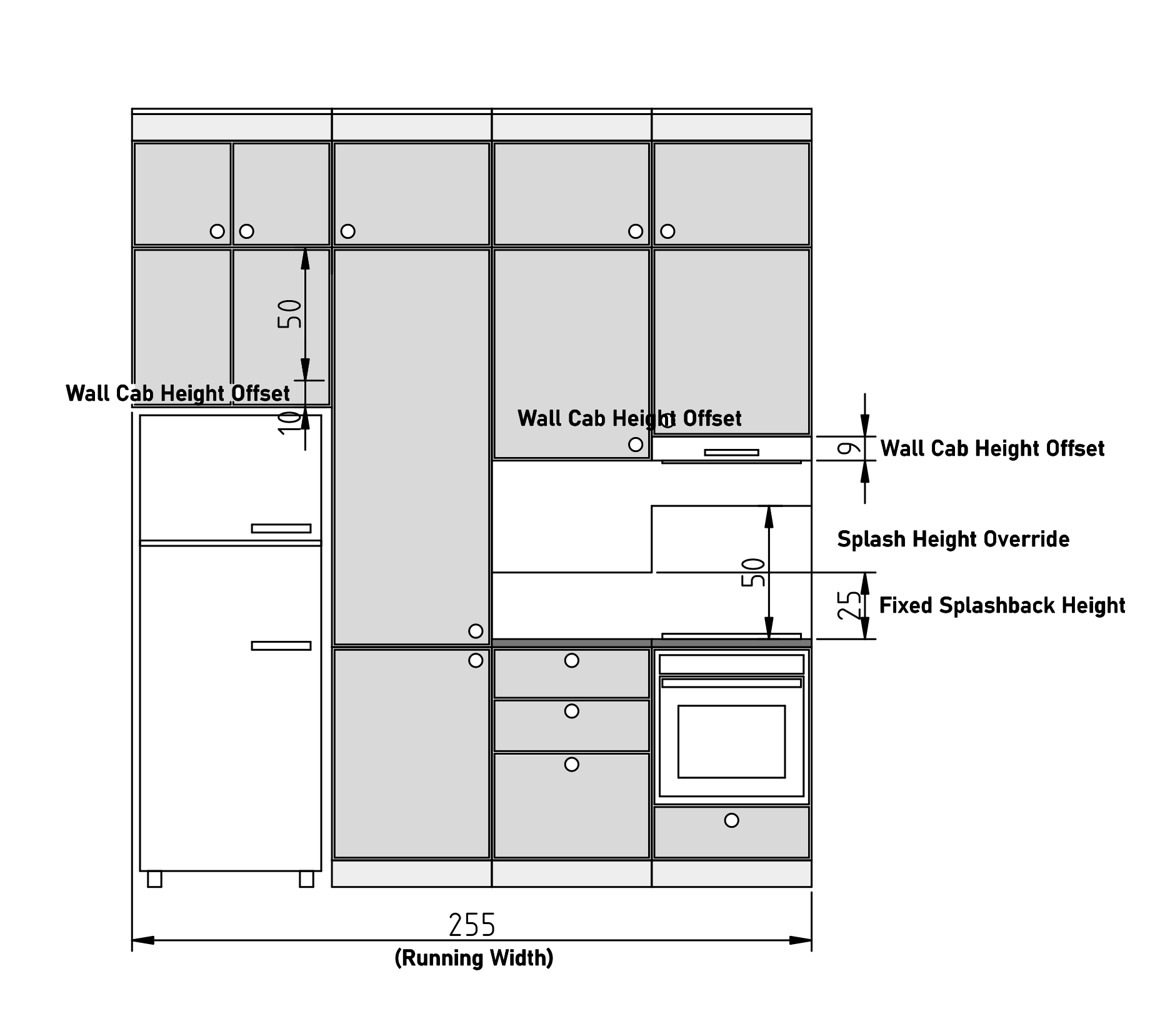

Fridge and Wall Cabinets can be offset to align with the appliances used.

Splash back extends to the underside of the wall cabinet by default. A custom height can be set for all splash backs and then be adjusted for each modul.




L-Shaped and U-Shaped Kitchens

Assemble L or U-shaped kitchen layouts with 2 or 3 kitchen blueprints attached to each other.


Bench Overhang and Cabinet Sides

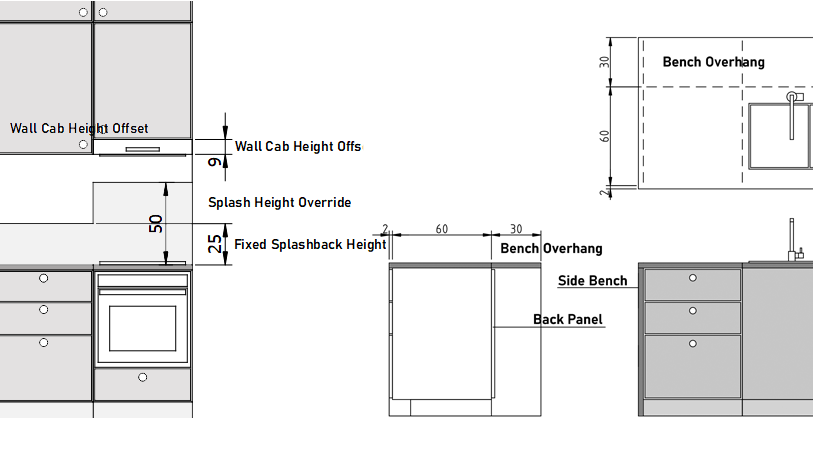

Offsides for Benches and Side Panel positioning
